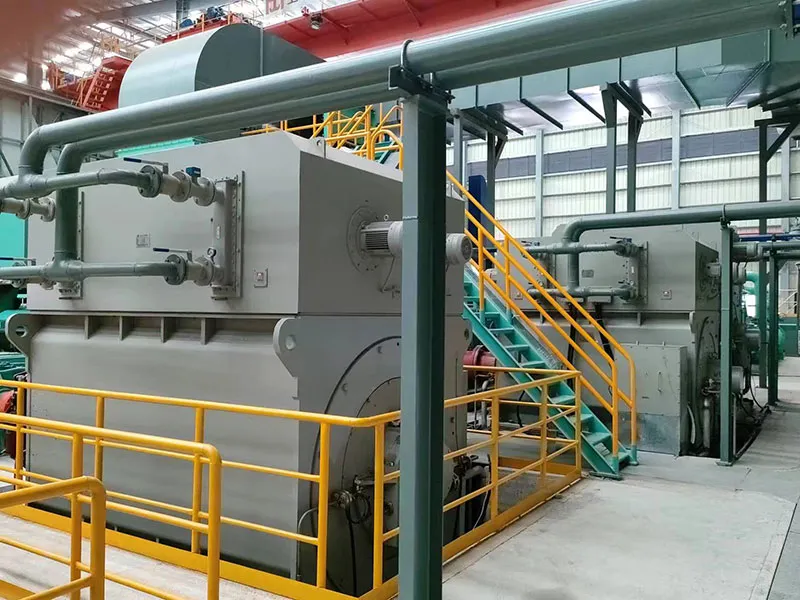

Our high voltage motors are the perfect choice for any configuration with power ranging from 200kW to 50MW (Max.35 kV), speeds from 500rpm to 3600rpm, and torque up to 26000Lb. Our motors comply with IEC and NEMA standards and can be equipped with various cooling systems, explosion-proof protection, and optional protection levels up to IP66.
| Model | Power | 500kW | |
| Rated voltage | 6000V | Rated current | 63.8A |
| Frequency | 50Hz | Efficiency | 94.2% |
| Rated speed | 743r/min | Rated torque | 6426N·M |
| Constant torque range | 3-50Hz | Cooling method | IC611 |
| Insulation class | H | Protection class | IP55 |
| Mounting code | B3 | Weight | 5400kg |

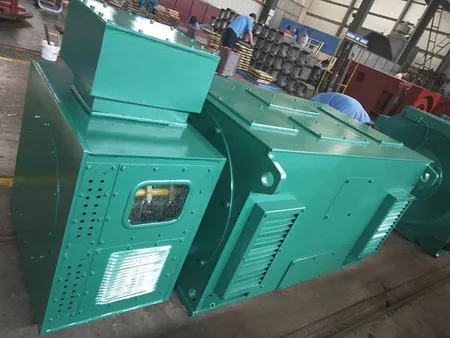

| Model | Power | 1500kW | |
| Voltage | 10000V | Rated stator current | 111A |
| Rotor voltage | 1450V | Rotor current | 634A |
| Frequency | 50Hz | Efficiency | 96% |
| Power factor | 0.812 | Rated speed | 742r/min |
| Rated Torque | 2.09 KN.M | Stator/Rotor Connection | Y |
| Stator weight | 7240 kg | Rotor weight | 3900 kg |
| Cooler weight | 1200kg | Total weight | 15200 kg |
| Model | Power | 3900kW | |
| Rated voltage | 6000V | Rated current | 443A |
| Frequency | 50Hz | Efficiency | 96.2% |
| COS | 0.8 | CON | Y |
| Rated speed | 990r/min | Cooling method | Water cooling |
| Insulation class | F | Protection class | IP55 |
| Weight | 15800kg |
At SEMC we work as a team united to get the job done safely. Let’s work together.
