YZP Series

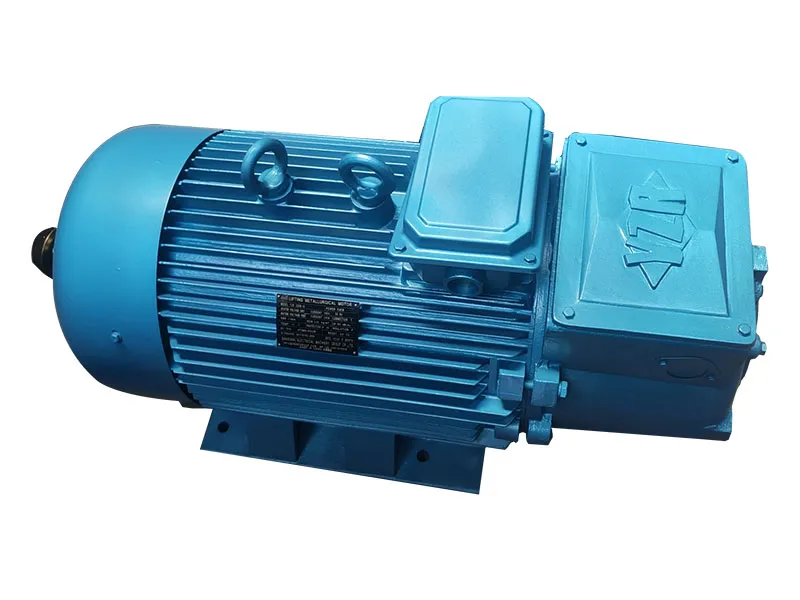

VFD Compatible Crane-Metallurgical Motor

Three-phase asynchronous AC motor using VFD for speed control in crane and metallurgical applications

Our VFD compatible crane-metallurgical motors (YZP series) are three-phase asynchronous AC motors with VFD speed control, ideal for crane and metallurgical applications. They offer high overload capacity, large capacity, robust mechanical strength, broad speed control range, and smooth operation. Compliant with IEC34-1 and GB755 standards, these motors present optimum performance equivalent to international standards from the 1990s. They are suitable for various cranes or metallurgical equipment, as well as frequent starting, braking, and reversing.

Request a Quote

Frame sizes: 112-1000mm
Rated voltage: 380V
Rated frequency: 50Hz
Frequency range: 3-100Hz
Number of poles: 2/4/6/8 poles
Protection degree: IP54
Insulation class: class F/class H
Duty cycle: S3
Mounting type: horizontal
Cooling method: IC416

Features

Excellent overload capability and mechanical strength
Stepless speed control with a wide range of adjustable speed
Insulation materials resistant to high-frequency voltage shocks
