Electric Motors

Vertical Hollow Shaft Motors (VHS Motors)

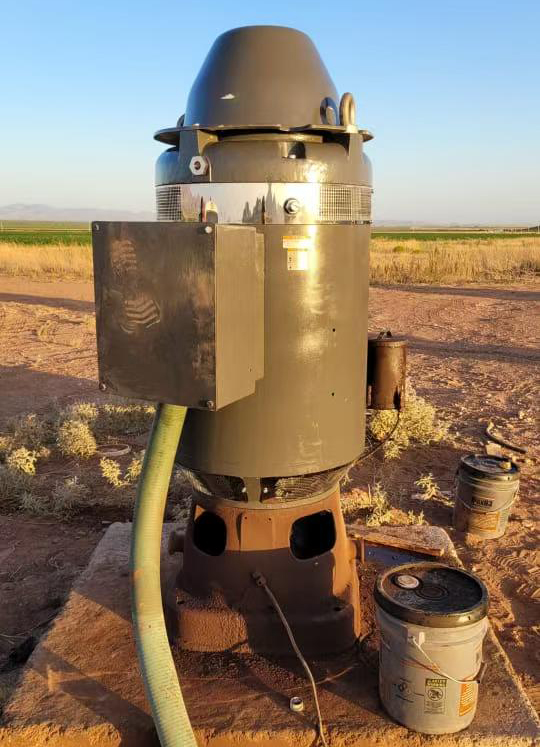

Electric motors for deep well water pumps
  • Rated voltage: 230V/460V/690V/1000V/10kV
  • Power: 10HP-500HP, 600HP-2500HP
  • Speed: 600RPM-3600RPM
  • Protection degree: IP23/IP55, WP1
  • Insulation class: class B or class H
VHS Motors

Vertical hollow shaft motors (VHS motors) are electric motors for deep well water pumps, typically installed in deep wells or boreholes to extract or transport groundwater. Our VHS motors are used in a variety of cases, including mine rescue, construction drainage, agricultural irrigation, industrial and mining enterprises, urban water supply and drainage, and wastewater treatment.

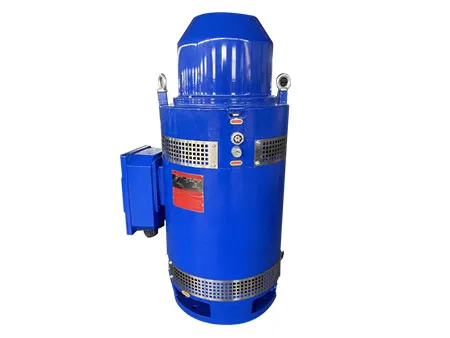

IEC Standard VHS Motor
IEC Standard VHS Motor
Power:
10HP - 2500HP
Voltage:
230V/460V/690V/1kV/6kV/10kV
Input voltage:
300-460V
Housing material:
cast steel
Product Info

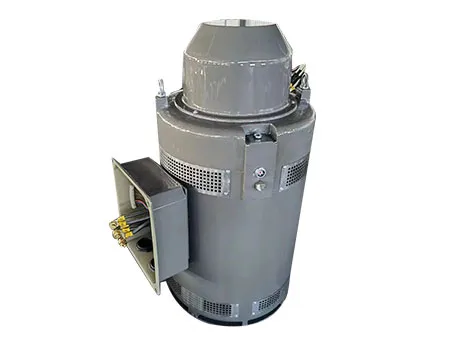

NEMA Standard VHS Motor
NEMA Standard VHS Motor
Standard:
NEMA MG-1, MG-13, IEEE-841
Certification:
CE, CSA, UL
Rated voltage:
230V/460V or as required
Rated frequency:
60Hz
Product Info

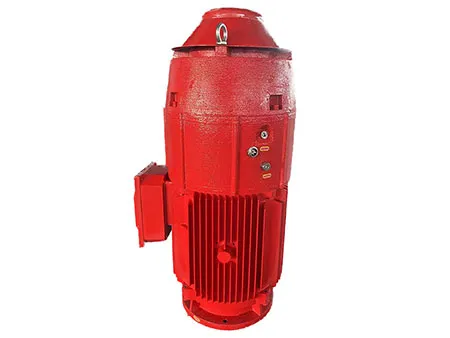

TEFC VHS Motor
TEFC VHS Motor
Service factor:
1.15
Frequency:
50/60Hz
Speed:
1800/3600RPM
Voltage:
230/460/690V
Product Info
VFD Compatible VHS Motor
VFD Compatible VHS Motor
Frequency:
30-80Hz
Service factor:
1.15
Max. operating temperature:
55℃
Altitude:
2000m
Product Info

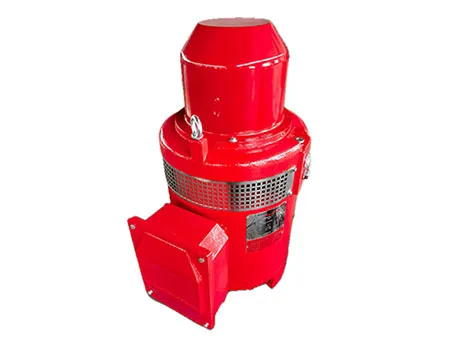

Vertical Fire Pump Motor
Vertical Fire Pump Motor
Insulation class:
class F
Service factor:
1.15
Frequency:
50/60Hz
Voltage:
230/460/690V
Product Info

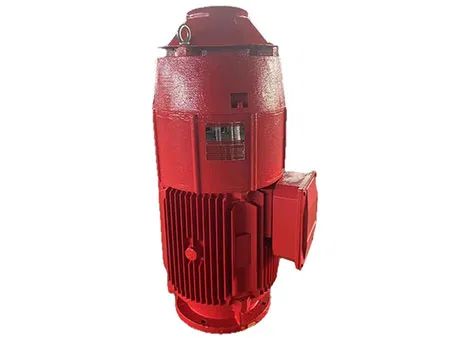

Premium Efficiency VHS Motor
Premium Efficiency VHS Motor
Energy efficiency:
90%-96%
Service factor:
1.15
Max. operating temperature:
55℃
Altitude:
2000m
Product Info

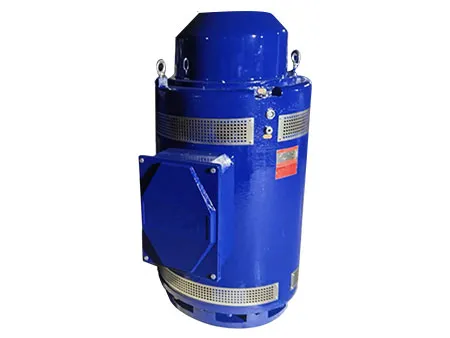

Vertical Water Pump Motor
Vertical Water Pump Motor
Insulation class:
class F
Service factor:
1.15
Max. operating temperature:
55℃
Altitude:
2000m
Product Info

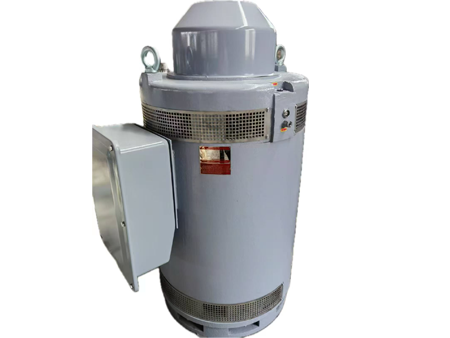

VFD Compatible Deep Well Pump Motor
VFD Compatible Deep Well Pump Motor
Insulation class:
class F/class H
Voltage:
380V-415V
Frequency:
5Hz/50Hz/75Hz/90Hz
Service factor:
1.15
Product Info

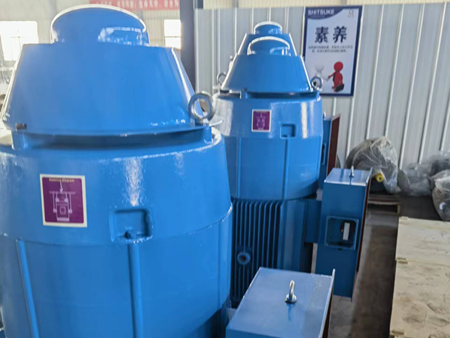

High Voltage Vertical Pump Motor
High Voltage Vertical Pump Motor
Rated power:
500kW/1000kW/2000kW/5000kW
Rated voltage:
6kV/10Kv/20kV
Power factor:
0.89
Rated speed:
100-3600RPM
Product Info

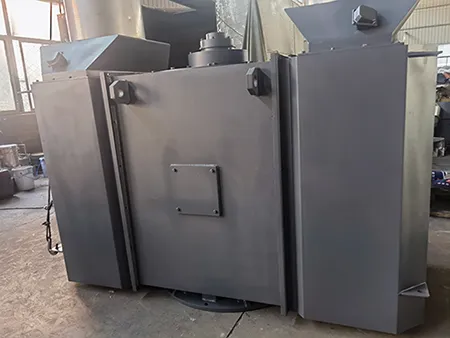

Vertical Hollow-Shaft Motor (Three Phase Induction Motor)
Vertical Hollow-Shaft Motor (Three Phase Induction Motor)
Rated power:
1000kW
Rated voltage:
6300V
Rated current:
109.2A
Rated speed:
1700/1470 RPM
Product Info

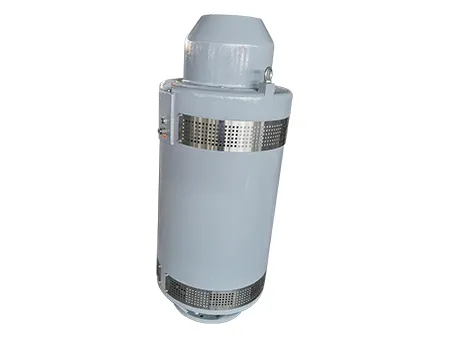

VHS5806P Vertical Hollow-Shaft Motor (500HP, Three Phase Induction Motor)
VHS5806P Vertical Hollow-Shaft Motor (500HP, Three Phase Induction Motor)
Power:
500HP
Current:
626A
Voltage:
400 V
Frequency:
50Hz
Product Info

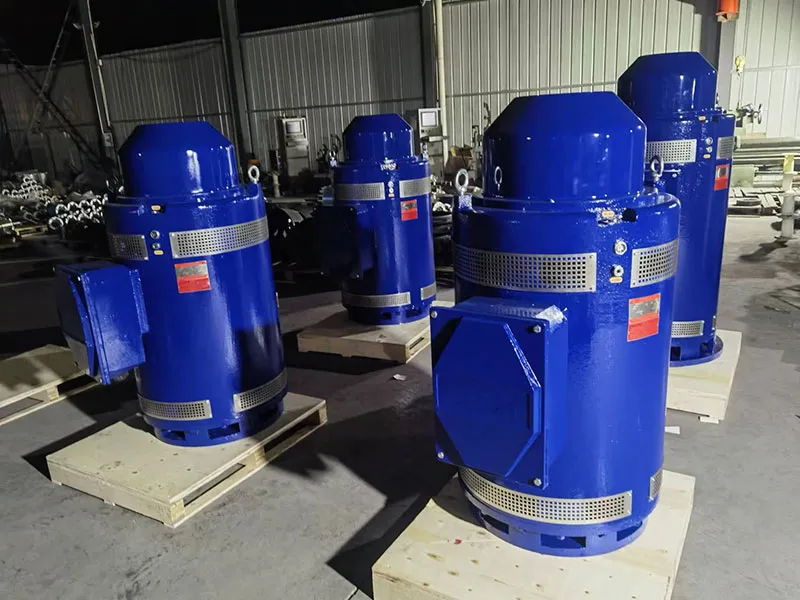

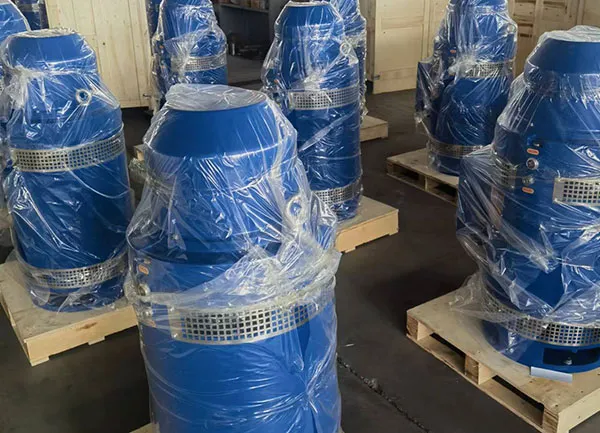

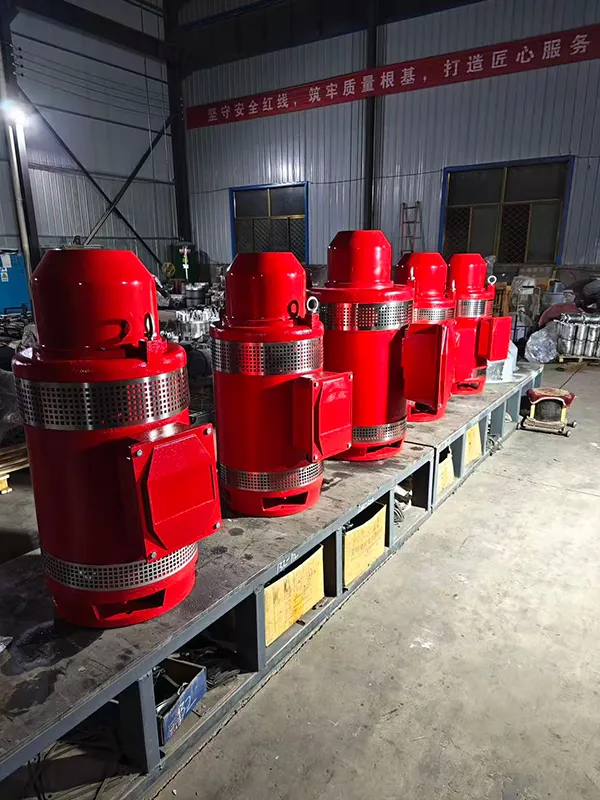

Successful Delivery of Vertical Hollow Shaft Motor
HS250-1-4 Vertical Hollow Shaft Motor (75HP, Three Phase Induction Motor)
Model VHS250-1-4 Insulation class F
Serial No. 2025111320001 Duty rating S1
Power 75HP Standard IEC60034-1
Current 98A Efficiency 94.6%
Voltage 400V Weight 545kg
Frequency 60Hz Rotation Clockwise
Speed 1780r/min Service factor 1.15
Connection (Δ) Delta Protection class IP23
Date 2025-11-13
HS250-1-4 Vertical Hollow Shaft Motor (75HP, Three Phase Induction Motor)
HS250-2-4 Vertical Hollow Shaft Motor (100HP, Three Phase Induction Motor)
Model VHS250-2-4 Insulation Class F
Serial No. 2025121102204 Duty rating S1
Power 100HP Standard IEC60034-1
Current 131A Efficiency 95%
Voltage 400V Weight 605kg
Frequency 60Hz Rotation Clockwise
Speed 1780 r/min Service factor 1.15
Connection Delta (Δ) Protection class IP23
Date 2025-12-11
HS250-2-4 Vertical Hollow Shaft Motor (100HP, Three Phase Induction Motor)
VHS280-1-4 Vertical Hollow Shaft Motor (150HP/200HP, Three Phase Induction Motor)
Model VHS280-1-4 Insulation class F
Serial No. 20240425002 Duty rating S1
Power 150HP Standard IEC60034-1
Current 187/108A Efficiency 95.4%
Voltage 400/690V Weight 900kg
Frequency 50Hz Rotation Clockwise
Speed 1480r/min Service factor 1.15
Connection Delta/Wye (Δ/Y) Protection class IP23
Date 2024-04-25
Model VHS280-1-4 Insulation class F
Serial No. 20241220002 Duty rating S1
Power 200HP Standard IEC60034-1
Current 254A Efficiency 95.80%
Voltage 400V Weight 1169kg
Frequency 60Hz Rotation Clockwise
Speed (r/min) 1800r/min Service factor 1.15
Connection Delta (Δ) Protection class IP23
Date 2024-12-20
VHS280-1-4 Vertical Hollow Shaft Motor (150HP/200HP, Three Phase Induction Motor)
VHS280-3-4 Vertical Hollow Shaft Motor (200HP, Three Phase Induction Motor)
Model VHS280-3-4 Insulation class F
Serial No. 2025111320001 Duty rating S1
Power 200HP Standard IEC60034-1
Current 267/154A Efficiency 95.8%
Voltage 380/660V Weight 1090kg
Frequency 60Hz Rotation Clockwise
Speed 1760r/min Service factor 1.15
Connection Delta/Wye (Δ/Y) Protection class IP23
Date 2025-11-13
VHS280-3-4 Vertical Hollow Shaft Motor (200HP, Three Phase Induction Motor)
VHS315-4-4 Vertical Hollow Shaft Motor (350HP, Three Phase Induction Motor)
Model VHS315-4-4 Insulation class F
Serial No. 20250312002 Duty rating S1
Power 350HP Standard IEC60034-1
Current 434A Efficiency 96.00%
Voltage 400V Weight 1445kg
Frequency 60Hz Rotation Clockwise
Speed 1800r/min Service factor 1.15
Connection Delta (Δ) Protection class IP23
Date 2025-3-12
VHS315-4-4 Vertical Hollow Shaft Motor (350HP, Three Phase Induction Motor)

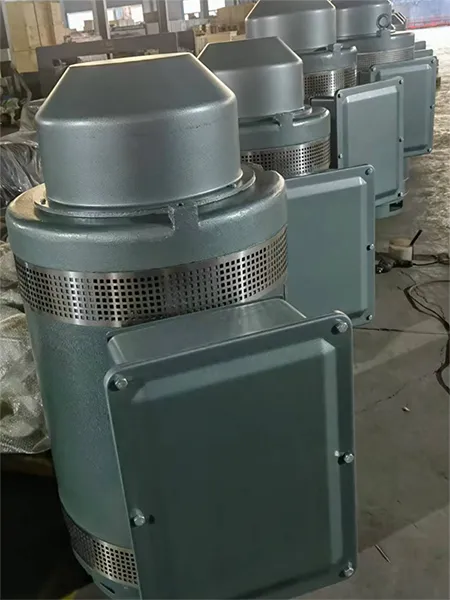

VHS355-1-4 Vertical Hollow Shaft Motor (400HP, Three Phase Induction Motor)
Model VHS355-1-4 Insulation class F
Serial No. 2025111340001 Duty rating S1
Power 400 HP Standard IEC60034-1
Current 528/306A Efficiency 96%
Voltage 380/660V Weight 1783kg
Frequency 60Hz Rotation Clockwise
Speed 1760r/min Service factor 1.15
Connection Delta/Wye (Δ/Y 0 Protection class IP23
Date 2025-11-13
Model VHS355-1-4 Insulation class F
Serial No. 2025111340001 Duty rating S1
Power 400 HP Standard IEC60034-1
Current 528/306A Efficiency 96%
Voltage 380/660V Weight 1783kg
Frequency 60Hz Rotation Clockwise
Speed 1760r/min Service factor 1.15
Connection Delta/Wye (Δ/Y) Protection class IP23
Date 2025-11-13
Model VHS355-1-4 Insulation class F
Serial No. 20241220001 Duty rating S1
Power 400HP Standard IEC60034-1
Current 501A Efficiency 96%
Voltage 400V Weight 1783kg
Frequency 60Hz Rotation Clockwise
Speed 1800r/min Service factor 1.15
Connection Delta (Δ) Protection class IP23
Date 2024-12-20
VHS355-1-4 Vertical Hollow Shaft Motor (400HP, Three Phase Induction Motor)
VHS355-3-4 Vertical Hollow Shaft Motor (300HP/500HP, Three Phase Induction Motor)
Model VHS355-3-4 Insulation class F
Serial No. 20241220001 Duty rating S1
Power 300HP Standard IEC60034-1
Current 368A Efficiency 96%
Voltage 400V Weight 1375kg
Frequency 60Hz Rotation Clockwise
Speed 1800r/min Service factor 1.15
Connection Delta (Δ) Protection class IP 23
Date 2024-12-20
Model VHS355-3-4 Insulation class F
Serial No. 20241220002 Duty rating S1
Power 500HP Standard IEC60034-1
Current 626A Efficiency 96%
Voltage 400V Weight 2273kg
Frequency 60Hz Rotation Clockwise
Speed 1800r/min Service factor 1.15
Connection Delta (Δ) Protection class IP23
Date 2024-12-20
Model VHS355-3-4 Insulation class F
Power 500HP Duty rating S1
Current 659/381A Efficiency 96%
Voltage 380/660V Weight 2500kg
Frequency 60Hz Rotation Clockwise
Speed 1760r/min Service factor 1.15
Connection Delta/Wye (Δ/Y) Protection class IP23
Standard IEC60034-1 Date 2024.12.20
VHS355-3-4 Vertical Hollow Shaft Motor (300HP/500HP, Three Phase Induction Motor)
VHS400-1-4 Vertical Hollow Shaft Motor (600HP, Three Phase Induction Motor)
Model VHS400-1-4 Insulation class F
Serial No. 2025111360001 Duty rating S1
Power 600HP Standard IEC60034-1
Current 791/457A Efficiency 96%
Voltage 380/660V Weight 2360kg
Frequency 60Hz Rotation Clockwise
Speed 1760r/min Service factor 1.15
Connection Delta/Wye (Δ/Y) Protection class IP 23
Date 2025-11-13
VHS400-1-4 Vertical Hollow Shaft Motor (600HP, Three Phase Induction Motor)
VHS445TP-4 Vertical Hollow Shaft Motor (250HP, Three Phase Induction Motor)
Model VHS445TP-4 Insulation class H
Serial No. 20240617001 Duty rating S1
Power 250HP Standard NEMA
Current 326/188A Efficiency 95.80%
Voltage 380/660V Weight 1130kg
Frequency 60Hz Rotation Clockwise
Speed 1800r/min Service factor 1.15
Connection Delta (Δ) Enclosure WP-1
Drive end bearing 7328B NSK Opposite end bearing 6317 NSK
Date 2024-6-17
VHS445TP-4 Vertical Hollow Shaft Motor (250HP, Three Phase Induction Motor)
VHS445TP-4 Vertical Hollow Shaft Motor (250HP, Three Phase Induction Motor)
Model VHS445TP-4 Insulation class H
Serial No. 20240617002 Duty rating S1
Power 250HP Standard NEMA
Current 326/188A Efficiency 95.80%
Voltage 380/660V Weight 1130kg
Frequency 60Hz Rotation Clockwise
Speed 1800r/min Service factor 1.15
Connection Delta (Δ) Enclosure WP-1
Drive end bearing 7328B NSK Opposite end bearing 6317 NSK
Date 2024-6-17
VHS445TP-4 Vertical Hollow Shaft Motor (250HP, Three Phase Induction Motor)
VHS5008TP-4 Vertical Hollow Shaft Motor (500HP, Three Phase Induction Motor)
Model VHS5008TP-4 Serial No. 20240425001
Power 500HP Insulation Class H
Current 626A Duty rating Continuous (S1)
Voltage 400V Max. ambient temp. 40℃
Frequency 60Hz Enclosure TEFC
Speed 1750 r/min Efficiency 96%
P-Base 24.5 Service factor (S.F.) 1.15
Oil for drive end 4L Phase 3
Leads 6 Down thrust 14800lbf
Design B Code G
Drive end bearing 7332B Opposite end bearing 6222-C3
Standard NEMA MG-1 Part 31 Weight 2200kg
VHS5008TP-4 Vertical Hollow Shaft Motor (500HP, Three Phase Induction Motor)
VHS5008P-4 Vertical Hollow Shaft Motor (650HP, Three Phase Induction Motor)
Model VHS5008P-4 Serial No. 2025102565001
Power 650HP Insulation class H
Current 84A Duty rating Continuous (S1)
Voltage 400V Max. ambient temp. 40 ℃
Frequency 60Hz Enclosure WP-1
Speed 180 r/min Efficiency 96%
P-Base 31.5 Service factor (S.F.) 1.15
Oil for drive end 5L Phase 3
Leads 6 Down thrust 14800lbf
Design B Code G
Drive end bearing 7332B Opposite end bearing 6222
Standard NEMA MG-1 Part 31 Weight 2500kg
VHS5008P-4 Vertical Hollow Shaft Motor (650HP, Three Phase Induction Motor)
Applications
Agricultural irrigation and rural water supply
  • High-altitude and mountainous water extraction: Long-shaft deep-well pump motors navigate rugged terrains like plateaus and mountains, accessing groundwater from wells up to 100 meters deep to support irrigation and drinking water needs in drought-prone areas.
  • Large-scale farmland irrigation: With high-flow and high-head performance, these motors efficiently draw groundwater to meet the demands of water-intensive crops like wheat and rice.
Urban and industrial water supply
  • Urban residential water: Deep-well pump motors deliver consistent drinking water for cities, using smart automated controls to optimize flow for high-density needs while minimizing energy consumption.
  • Industrial process and cooling water: Supporting industries like petroleum, chemical, and pharmaceutical, these pumps extract groundwater or liquid raw materials; stainless steel models withstand corrosion and high temperatures in harsh industrial settings.
Applications
Pulp and Paper Mills
  • Continuous high-load operation: VHS motors provide reliable, round-the-clock performance for pulp agitators, pumps, and vacuum systems commonly found in paper manufacturing lines.
  • Moisture-resistant design: Constructed with sealed enclosures and anti-corrosive materials, our VHS motors, such as NEMA standard VHS, TEFC VHS, etc., are well-suited for humid, fiber-laden environments typical of pulp processing plants.
Municipalities and wastewater treatment systems
  • Minimal energy consumption: Our VHS motors available in IE3, IE4, and IE5 efficiency classes minimize energy consumption, which helps municipalities reduce power expense while maintaining long-duration operation.
  • Anti-reverse protection: Equipped with a steel ball type anti-reverse mechanism, our VHS motors ensure unidirectional operation, preventing costly pump damage caused by flow reversal.
Well Drilling Operations
  • High thrust capacity: Our VFD compatible deep well pump motor supports both standard and high thrust configurations, ideal for deep-well water extraction in operations reaching hundreds of meters underground.
  • Flexible adaptability: Our VFD-compatible VHS motors comply with IEC or NEMA standards, enabling easy installation worldwide, with customizable IP55 or IP67 protection, supporting various environments.
Mining and drilling operations in a harsh environment
  • Designed with Totally Enclosed Fan Cooled (TEFC) motors: Prevents dust and moisture from entering and damaging the insulation system. Our TEFC VHS motors operate reliably even in high-temperature or humid environments.
  • High durability: Built with an explosion-proof motor engineered for hazardous situations, and equipped with high-output torque to deliver powerful, consistent torque. Our VHS motors drive conveyors, pulverizers, crushers, etc., with exceptional efficiency.
Features
  • Our VHS motors have no special requirements for well pipes or water pipes, making them suitable for steel pipe wells, ash pipe wells, and earthen wells. Under permissible pressure, steel pipes, rubber pipes, and plastic pipes can all be used as water pipes.
  • Our VHS motors are easy to install, use, and maintain, require minimal space, and do not need a pump house.
  • Our VHS motors are easy to repair and have a long service life.
VHS Motors
We're Here To Help
How Can We Help?

At SEMC we work as a team united to get the job done safely. Let’s work together.
Contact Us
