    Rolling Mill
    • Home
    • Metallurgical Equipment
    • Rolling Mill

    Rolling Mill

    The rolling mill is a kind of equipment commonly utilized for rolling of metal to produce structural section, sheet material, tubular product and other products. And the rolling method includes both hot rolling and cold rolling. In the process of rolling, metal blank travels through the gas between a pair of rotating rollers in various shapes. Thus, the sections of such materials are reduced but the length is increased.

    Request a Quote

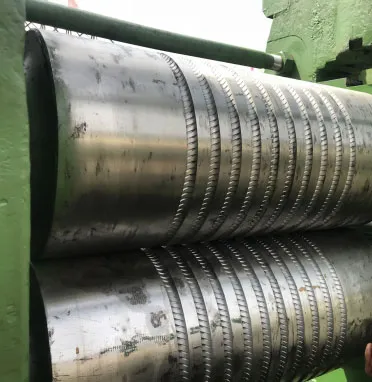

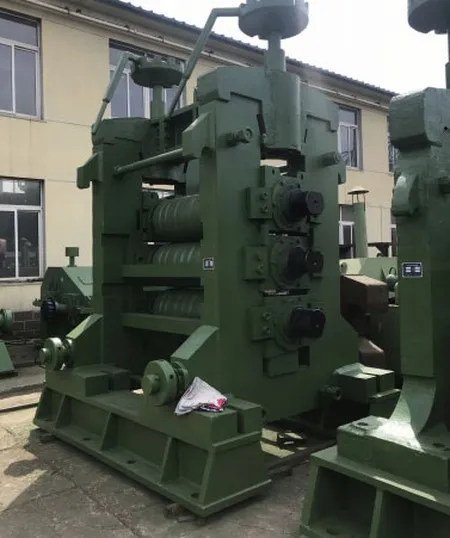

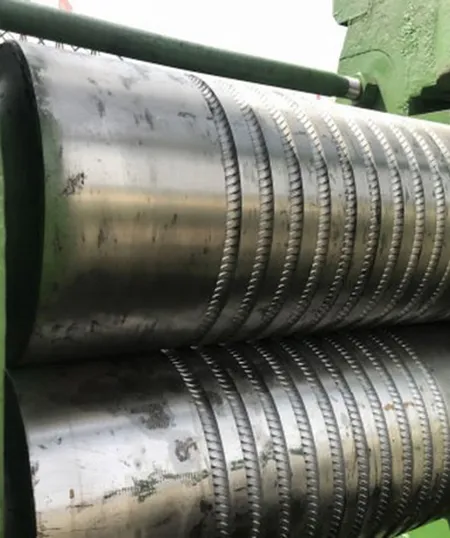

    100,000 - 200,000 Ton Wire Rod Rolling Mill
    100,000 - 200,000 Ton Wire Rod Rolling Mill
    100,000 - 200,000 Ton Wire Rod Rolling Mill
    • Shear force: 360 ton
    • Motor: DC440V, 250kW
    • Cylinder drive: rotary actuator
    • Production capacity: 100,000-200,000 ton
    Equipment List and Quoted Prices of Rolled Steel Production Line

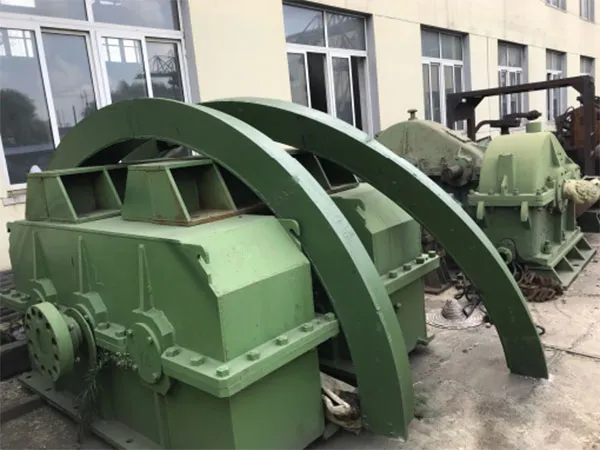

    200,000 Ton Steel Angle & Steel Channel Rolling Mill
    200,000 Ton Steel Angle & Steel Channel Rolling Mill
    • Size of processed steel profile:
      Steel flat bar 3×25mm-12×80mm
      Steel angle: 2.5-8#
      Steel channel: 5-10#
      Steel rod: ⌀8-32mm
    • Billet size:
      120×120mm, 130×130mm, 150×150mm (length 6000mm)
    • Production capacity:
      200,000 ton

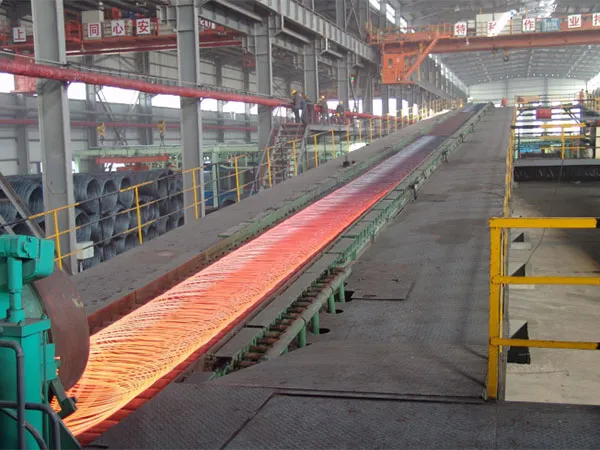

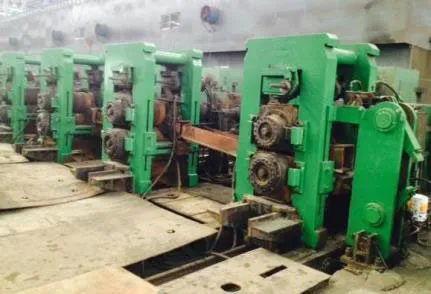

    500,000 Ton Wire Rod Rolling Mill
    500,000 Ton Wire Rod Rolling Mill
    • Billet size: 150×150mm (length 6-12m)
    • Processed wire rod: ⌀8-32mm
    • Max. speed (5.5-14mm wire rod): 90m/s
    • Production capacity:
      Rebar: 500,000 ton/year
      Wire rod: 250,000-400,000 ton/year
