DRI Smelting Furnace
  • Home
  • Metallurgical Equipment
  • DRI Smelting Furnace

DRI Smelting Furnace

Our DRI Smelting Furnace offers efficient, high-quality smelting with advanced control, precise temperature management, and robust durability, ensuring reliable and cost-effective operation.

Request a Quote
GW50-26000-0.15J Furnace Parameters
  • Rated capacity: 50ton
  • Max. capacity: 60ton
  • Working temperature: 1650 ℃

Electric Parameters
  • Transformer capacity: 28000kVA
  • Transformer input voltage: 35/20/10kV
  • Transformer output voltage: 1750V
  • Rated power of MF power supply: 15000-26000kW
  • Max. output voltage of MF power supply: 6200V
  • Rectifying pulse: 24 pulse
  • Inductor voltage: 6200V
  • Working frequency: 150Hz
  • Working efficiency: 96%
  • Start-up success rate: 100%

Comprehensive Parameters
  • Melting rate: 40ton/hours
  • Melting time: 75-90min
  • Melting power consumption: 510±5% kWh/t
  • Working Noise: ≤75dB
Browse Popular Electric Motors
Electric Arc Furnace
Electric Arc Furnace

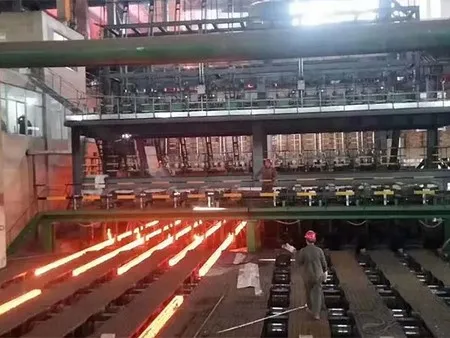

Continuous Casting Machine
Continuous Casting Machine

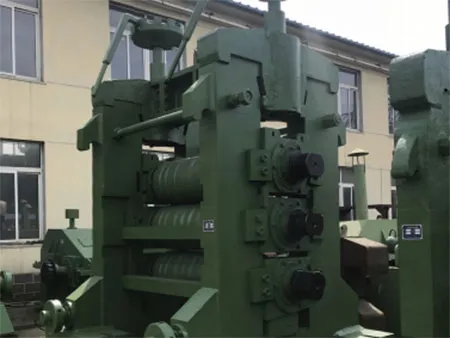

Rolling Mill
Rolling Mill

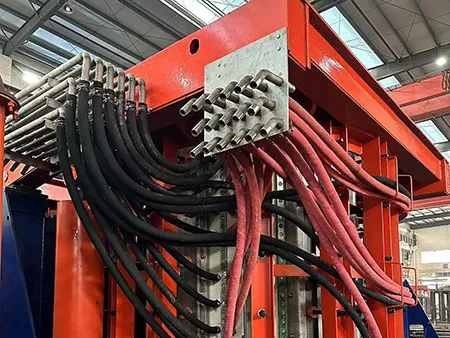

Medium-Frequency Induction Furnace
