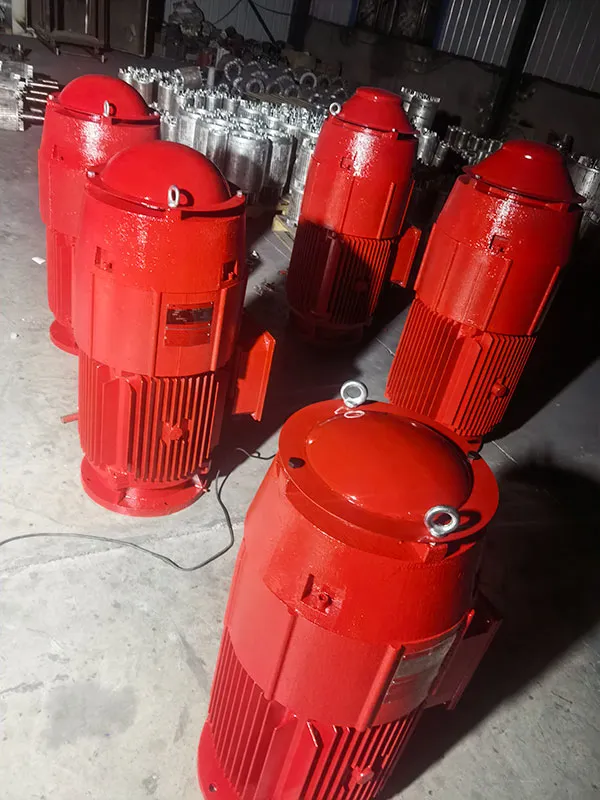

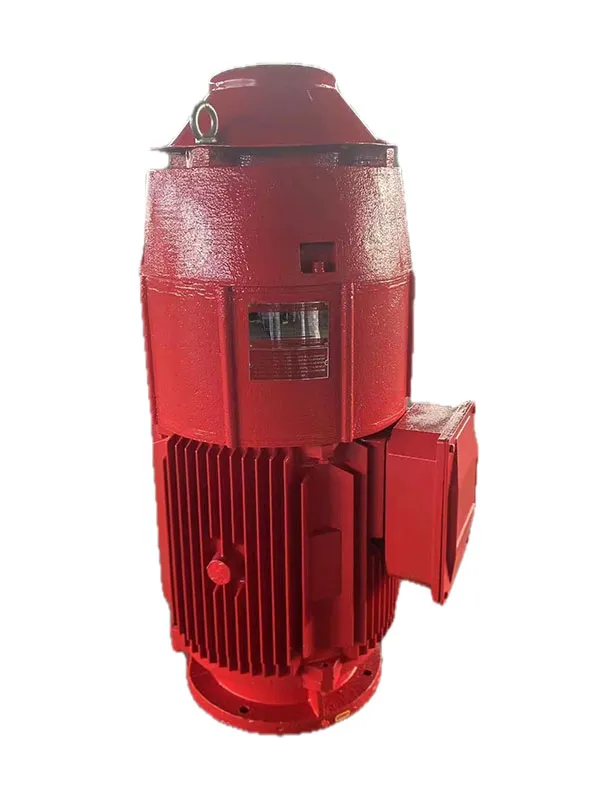

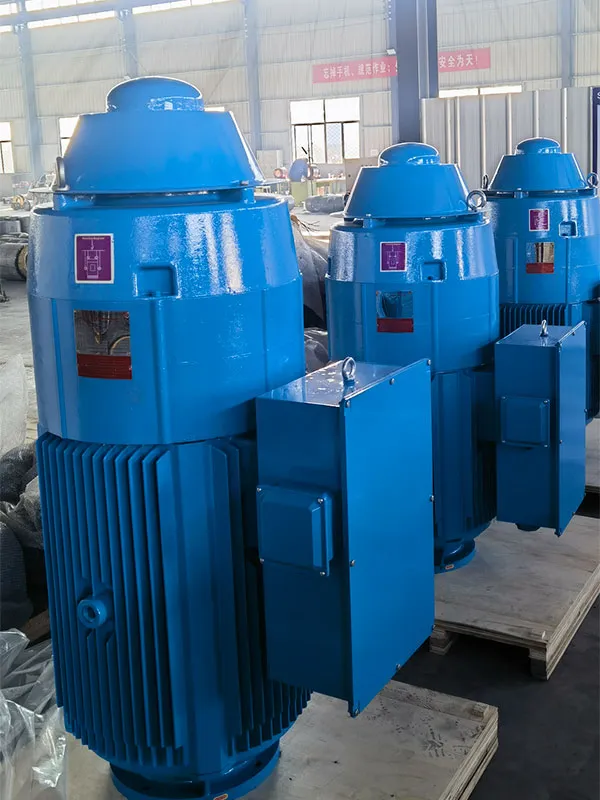

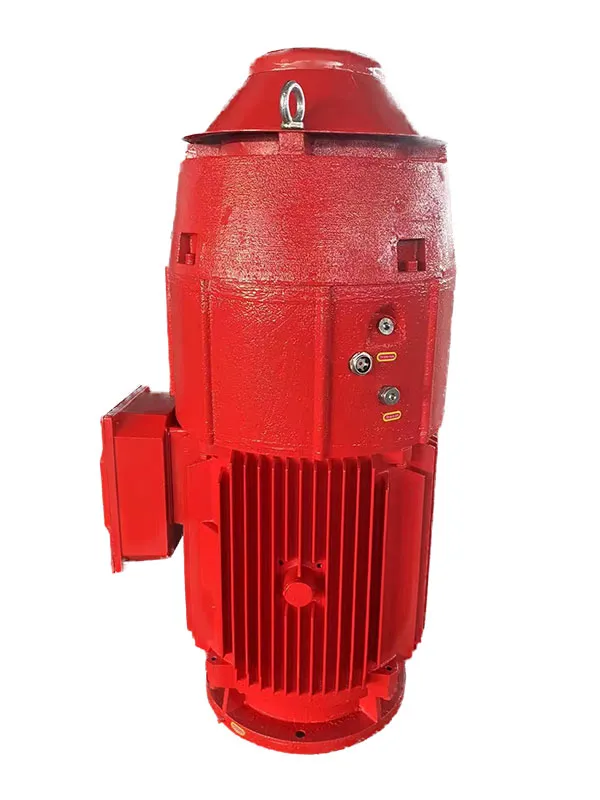

TEFC VHS Motor
TEFC VHS Motor
TEFC VHS Motor
TEFC VHS Motor

TEFC VHS Motor

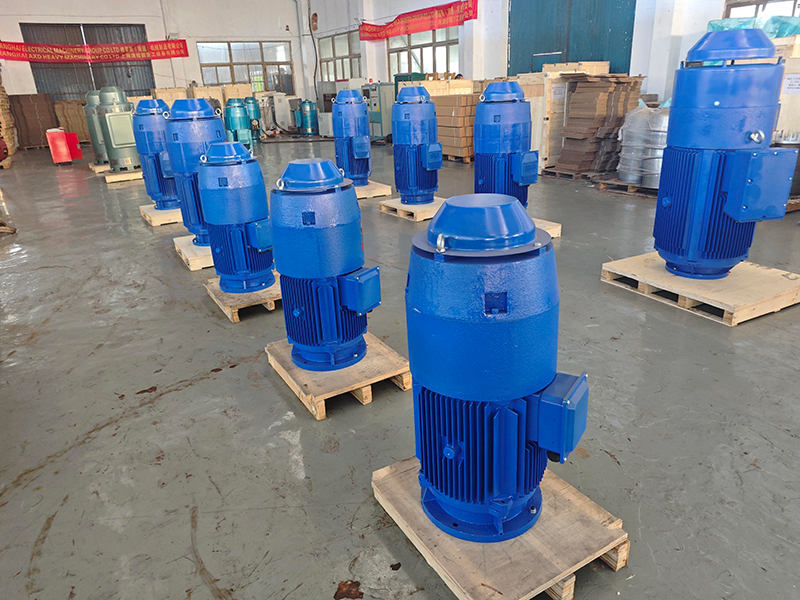

Vertical hollow shaft pump motor with totally enclosed fan-cooled (TEFC) enclosure

Our TEFC VHS motors, equipped with a totally enclosed fan-cooled (TEFC) enclosure, is suitable for humid environments requiring deep wells or cases requiring high protection. This type of motors is primarily used with fire pumps and deep well pumps for various applications, including deep wells, mines, power stations, and agricultural irrigation.

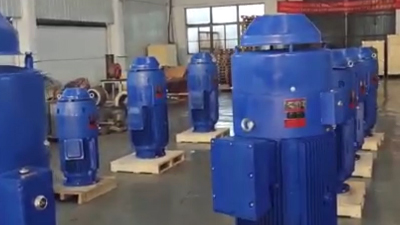

VFD Compatible Deep Well Pump Motor
VFD Compatible Deep Well Pump Motor
Request a Quote
  • Service factor: 1.15
  • Frequency: 60Hz
  • Speed: 1800/3600RPM
  • Voltage: 230/460/690V
  • Protection degree: TEFC
  • NEMA design, special balancing
  • Equipped with steel ball type anti-reverse mechanism
  • Altitude: 1000-2000m
  • Efficiency: Premium Efficiency (super high efficiency)
  • Material: Cast steel
  • Mounting type: Vertical P-Base
  • Shaft position: Vertical
  • PWS, special balancing
  • Startup mode: Star delta starter/VFD/soft starter
  • Wide voltage range: 300-460V
  • Insulated thrust bearings (Optional): TMB (standard), NSK, SKF, and FAG
  • Warranty: 1-2 years
  • Ambient temperature: 50-60℃
  • Altitude: 1000-2000m
Key Features

Enclosed design prevents air exchange between the motor’s interior and exterior, with a rotor fan circulating internal air to transfer heat to enclosed components and an external fan blowing ambient air over the motor for effective cooling.

Material and lubrication system
  • Oil-lubricated motors ship with empty bearing oil reservoirs; bearings retain a thin oil film, but reservoirs must be filled after three months of storage, with prominent labeling advised to avoid improper operation, oil leaks, or damage to internal parts.
  • Two angular contact ball thrust bearings at the motor’s top manage upward or downward thrust, while a lower radial ball bearing handles pump-induced radial loads.
Corrosion-resistant materials
  • Motor body features cast steel, oxygen-free copper windings, and a squirrel-cage rotor with integrated upper and lower cooling fans.
  • Paired vertical turbine pumps use heat-resistant ductile iron, 2Cr13 stainless steel, or 304/316 stainless steel, ideal for impure or corrosive water.
  • Geothermal deep-well pumps incorporate slender pump bodies with high-temperature, corrosion-resistant materials, withstanding high-pressure subsurface conditions.
Specifications
Model Rated Power (HP) Frame Speed (RPM) Rated Voltage (V) Efficiency (%) Axial Thrust Load (Ibs) Frame Diameter (in) Weight (Ibs)
VHS213TP-2-0075P2 7.5 213TP 3600 230/460 88.9 2000 10 302
VHS215TP-4-0075P2 7.5 215TP 1800 230/460 91.4 2500 10 302
VHS213TP-2-010P2 10 213TP 3600 230/460 89.9 2000 10 340
VHS215TP-4-010P2 10 215TP 1800 230/460 92.1 2500 10 340
VHS215TP-2-015P2 15 215TP 3600 230/460 90.6 2000 10 448
VHS254TP-4-015P2 15 254TP 1800 230/460 93.4 3200 10 583
VHS254TP-2-020P2 20 254TP 3600 230/460 91.4 2500 10 596
VHS256TP-4-020P2 20 256TP 1800 230/460 93.4 3200 10 621
VHS256TP-2-025P2 25 256TP 3600 230/460 92.1 2500 10 646
VHS284TP-4-025P2 25 284TP 1800 230/460 94.0 3200 10 658
VHS284TP-2-030P2 30 284TP 3600 230/460 92.1 2500 10 674
VHS286TP-4-030P2 30 286TP 1800 230/460 94.5 3200 10 698
VHS286TP-2-040P2 40 286TP 3600 230/460 92.8 2500 10 728
VHS324TP-4-040P2 40 324TP 1800 230/460 94.5 5500 16.5 937
VHS324TP-4-040P2 40 324TP 1800 460 94.5 5500 16.5 937
VHS324TP-2-050P2 50 324TP 3600 230/460 93.4 4290 16.5 956
VHS324TP-2-050P2 50 324TP 3600 460 93.4 4290 16.5 956
VHS326TP-4-050P2 50 326TP 1800 230/460 94.9 5500 16.5 989
VHS326TP-4-050P2 50 326TP 1800 460 94.9 5500 16.5 989
VHS326TP-2-060P2 60 326TP 3600 230/460 94.0 4290 16.5 1030
VHS326TP-2-060P2 60 326TP 3600 460 94.0 4290 16.5 1030
VHS364TP-4-060P2 60 364TP 1800 230/460 95.4 5600 16.5 1140
VHS364TP-4-060P2 60 364TP 1800 460 95.4 5600 16.5 1140
VHS364TP-2-075P2 75 364TP 3600 230/460 94.0 4400 16.5 1162
VHS364TP-2-075P2 75 364TP 3600 460 94.0 4400 16.5 1162
VHS365TP-4-075P2 75 365TP 1800 230/460 95.4 5600 16.5 1192
VHS365TP-4-075P2 75 365TP 1800 460 95.4 5600 16.5 1192
VHS365TP-2-100P2 100 365TP 3600 230/460 94.0 4400 16.5 1226
VHS365TP-2-100P2 100 365TP 3600 460 94.0 4400 16.5 1226
VHS404TP-4-100P2 100 404TP 1800 230/460 95.8 6700 16.5 1638
VHS404TP-4-100P2 100 404TP 1800 460 95.8 6700 16.5 1638
VHS404TP-2-125P2 125 404TP 3600 230/460 94.5 5265 16.5 1646
VHS404TP-2-125P2 125 404TP 3600 460 94.5 5265 16.5 1646
VHS405TP-4-125P2 125 405TP 1800 230/460 95.8 6700 16.5 1700
VHS405TP-4-125P2 125 405TP 1800 460 95.8 6700 16.5 1700
VHS405TP-2-150P2 150 405TP 3600 230/460 94.5 6285 16.5 1755
VHS405TP-2-150P2 150 405TP 3600 460 94.5 6285 16.5 1755
VHS444TP-4-150P2 150 444TP 1800 230/460 96.2 8000 16.5 2256
VHS444TP-4-150P2 150 444TP 1800 460 96.2 8000 16.5 2256
VHS445TP-4-200P2 200 445TP 1800 230/460 96.2 8000 16.5 2438
VHS445TP-4-200P2 200 445TP 1800 460 96.2 8000 16.5 2438
VHS445TP-4-250P2 250 445TP 1800 230/460 96.2 8000 16.5 2588
VHS445TP-4-250P2 250 445TP 1800 460 96.2 8000 16.5 2588
VHS447TP-4-300P2 300 447TP 1800 460 96.2 8000 20 2990
VHS5006P-4-300P2 300 5006P 1800 460 96.2 8750 20 3946
VHS5006P-4-350P2 350 5006P 1800 460 96.2 8750 20 4057
VHS5008P-4-400P2 400 5008P 1800 460 96.2 8750 24.5 5302
VHS5008P-4-450P2 450 5008P 1800 460 96.6 8750 24.5 5483
VHS5008P-4-500P2 500 5008P 1800 460 96.6 8750 24.5 5655
VHS5807P-4-600P2 600 5807P 1800 460 96.6 9680 30.5 6872
