Vertical Water Pump Motor

Vertical Water Pump Motor

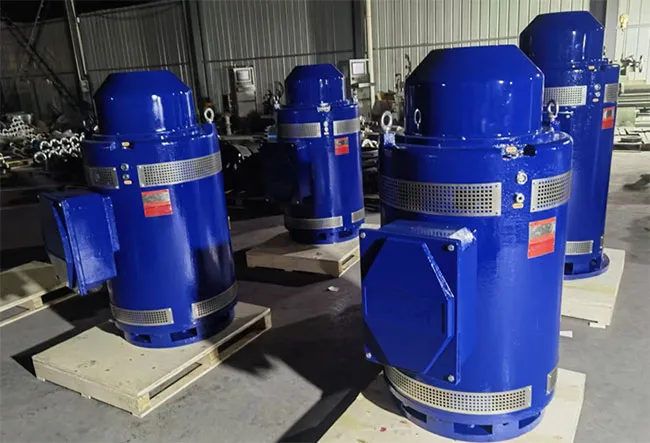

Vertical hollow shaft motor for driving submersible pumps

Our vertical water pump motors are VHS motors for driving submersible pumps. These motors and pumps work together submerged in water to extract groundwater from deep wells and can also be used for water extraction projects from rivers, reservoirs, and canals. These motors are mainly used for farmland irrigation, providing water for people and livestock in highland areas, and water supply and drainage for urban, industrial, railway, mining, and construction sites.

Request a Quote
  • Insulation class: class F
  • Service factor: 1.15
  • Max. operating temperature: 55℃
  • Altitude: 2000m
  • Protection degree: IP23/IP54/IP55
  • GB design, special balancing
  • Equipped with anti-reverse ratchet
Specifications

(380-415V, 60HZ, 3-phase, IE3 efficiency)

Model Rated Power (kW) Speed (RPM) Rated Voltage (V) Efficiency (%) Axial Thrust Load (N) Coupling Height H1 Coupling Diameter D1 Keyway F1 Weight (kg)
YLB132-1-2 5.5 3600 380~415 89.5 7840 483 20 6 111
YLB132-2-2 7.5 3600 380~415 90.2 7840 483 20 6 115
YLB160-1-2 11 3600 380~415 91.0 9800 759 28 8 218
YLB160-2-2 15 3600 380~415 91.0 9800 759 28 8 238
YLB160-1-4 11 1800 380~415 92.4 12740 759 28 8 220
YLB160-2-4 15 1800 380~415 93.0 12740 759 28 8 240
YLB180-1-2 18.5 3600 380~415 91.7 12740 808 28 8 272
YLB180-2-2 22 3600 380~415 91.7 12740 808 28 8 285
YLB180-1-4 18.5 1800 380~415 93.6 15680 808 32 10 300
YLB180-2-4 22 1800 380~415 93.6 15680 808 32 10 320
YLB200-1-2 30 3600 380~415 92.4 16660 866 36 10 380
YLB200-2-2 37 3600 380~415 93.0 16660 866 36 10 410
YLB200-1-4 30 1800 380~415 94.1 21560 866 36 10 425
YLB200-2-4 37 1800 380~415 94.5 21560 866 36 10 455
YLB200-3-4 45 1800 380~415 95.0 21560 866 36 10 485
YLB250-1-4 55 1800 380~415 95.4 28420 1092 45 14 710
YLB250-2-4 75 1800 380~415 95.4 28420 1092 45 14 740
YLB250-3-4 90 1800 380~415 95.4 28420 1092 45 14 800
YLB280-1-4 110 1800 380~415 95.8 39200 1314 50 14 1220
YLB280-2-4 132 1800 380~415 95.8 39200 1314 50 14 1355
YLB280-3-4 150 1800 380~415 96.2 39200 1314 50 14 1490
YLB280-4-4 185 1800 380~415 96.2 39200 1363 50 14 1630
YLB315-1-4 185 1800 380~415 96.2 47150 1546 60 18 1900
YLB315-2-4 200 1800 380~415 96.2 47150 1546 60 18 2020
YLB315-3-4 225 1800 380~415 96.2 47150 1546 60 18 2100
YLB315-4-4 260 1800 380~415 96.2 47150 1546 60 18 2180
YLB355-1-4 280 1800 380~415 96.2 58930 1687 65 18 2940
YLB355-2-4 315 1800 380~415 96.2 58930 1687 65 18 3050
YLB355-3-4 355 1800 380~415 96.2 58930 1687 65 18 3180
YLB355-4-4 400 1800 380~415 96.2 58930 1847 65 18 3310
YLB355-5-4 450 1800 380~415 96.2 58930 1847 65 18 3450
