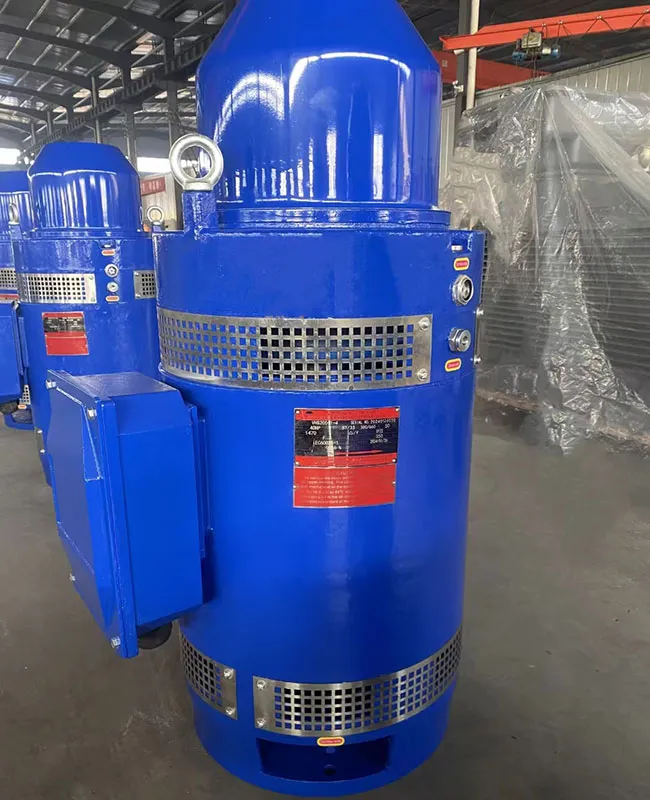

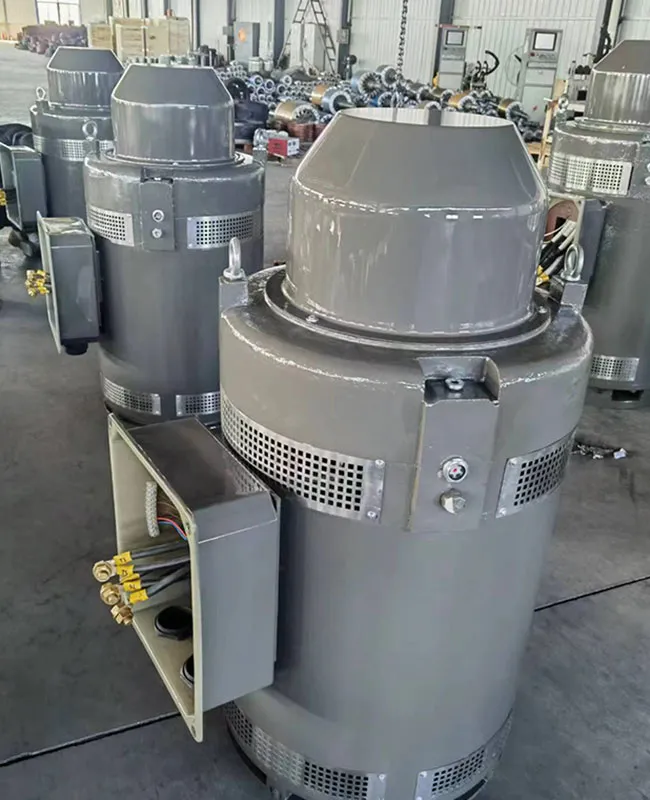

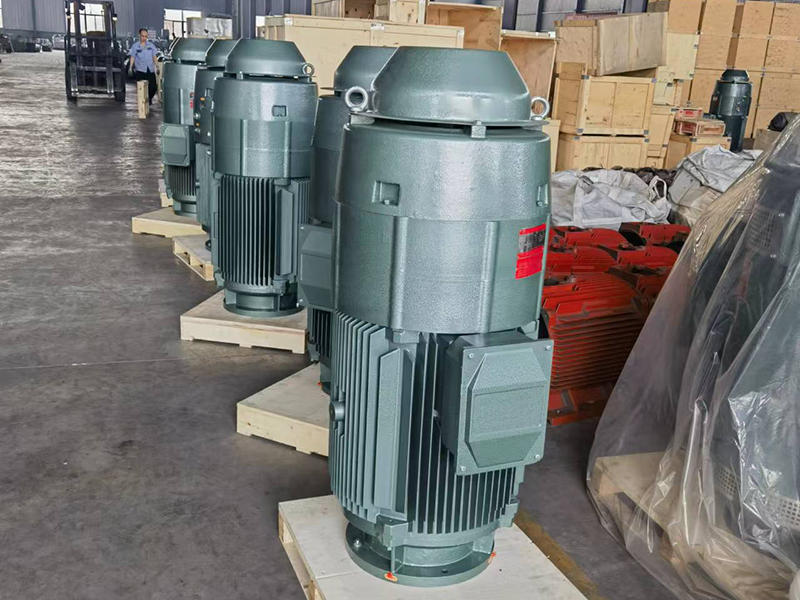

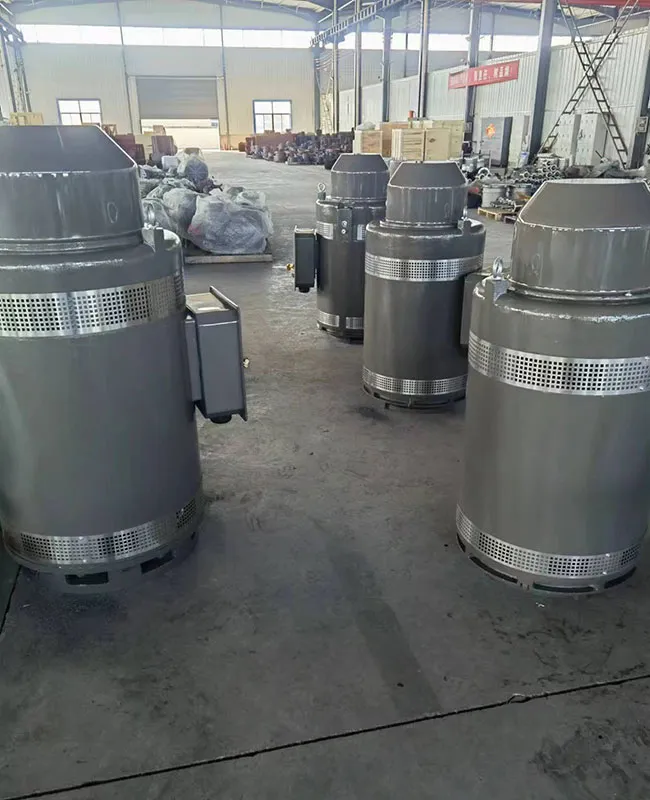

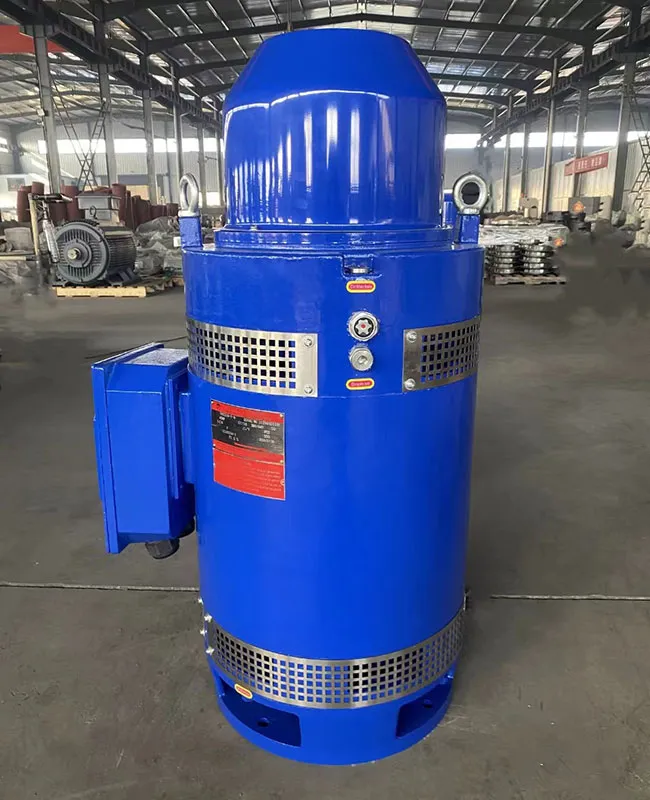

IEC Standard VHS Motor
IEC Standard VHS Motor
IEC Standard VHS Motor
IEC Standard VHS Motor
IEC Standard VHS Motor

IEC Standard VHS Motor

Vertical hollow shaft pump motor in line with IEC energy efficiency classes

Our IEC standard VHS motors are in line with IEC energy efficiency classes, a standard mainly suitable for markets in Europe, Asia, and Africa. The primary differences between IEC and NEMA standards lie in energy efficiency grades, installation dimensions, bearing lubrication methods, and wiring methods for the junction box.

Our IEC standard VHS motors can extract groundwater from depths of 100 to 200 meters, primarily used for irrigation in desert areas, airport firefighting, and agricultural irrigation in water-scarce regions.

Request a Quote
  • Power: 10HP - 2500HP
  • Voltage: 230V/460V/690V/1kV/6kV/10kV
  • Input voltage: 300-460V
  • Housing material: cast steel
  • Efficiency: IE3, IE4, IE5
  • Equipped with steel ball type anti-reverse mechanism
  • Sine wave coil design
  • Protection degree: IP23/IP54/IP55
  • Thrust bearing: Down thrust, standard thrust, and high thrust
  • Mounting type: Vertical P-Base
  • Material: Cast steel
  • Shaft position: Vertical
  • PWS, special balancing
  • Startup mode: Star delta starter/VFD/soft starter
  • Wide voltage range: 300-460V
  • Insulated thrust bearings (Optional): TMB (standard), NSK, SKF, and FAG
  • Warranty: 1-2 years
  • Ambient temperature: 50-60℃
  • Altitude: 1000-2000m
Advanced Features
  • Built with Class F insulation and assessed for Class B temperature rise, ensuring reliable performance under demanding conditions.
  • Operates with a 1.15 service factor (sinusoidal power supply), thriving in ambient temperatures up to 60°C and altitudes up to 3,300 feet.
  • Features a weather-protected IP23/IP54/IP55 enclosure for dependable operation in challenging environments.
  • 230/460V motors support part-winding start at 230V, while 380–420V motors are compatible with star/delta starting for seamless integration.
  • Equipped with a steel ball non-reverse ratchet to prevent reverse rotation, maximizing operational reliability.
IEC Standard VHS Motor

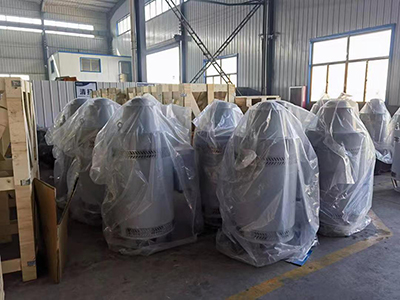

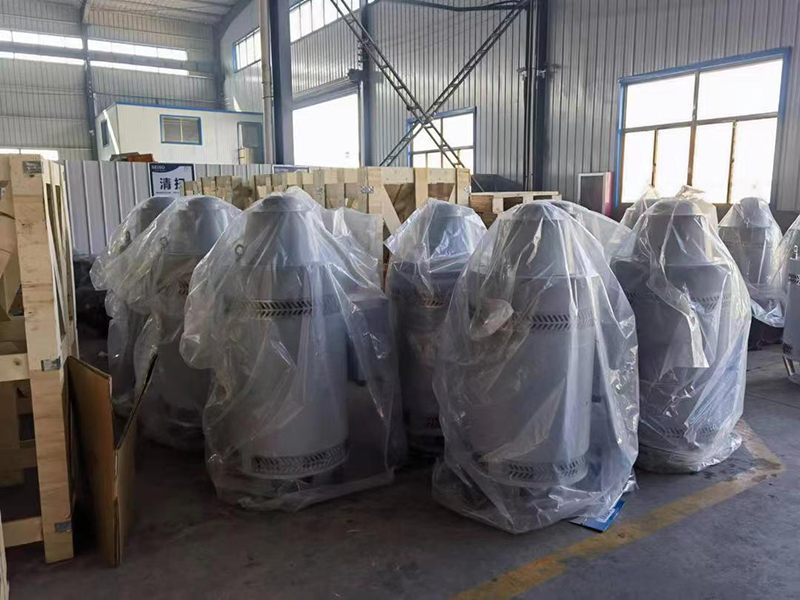

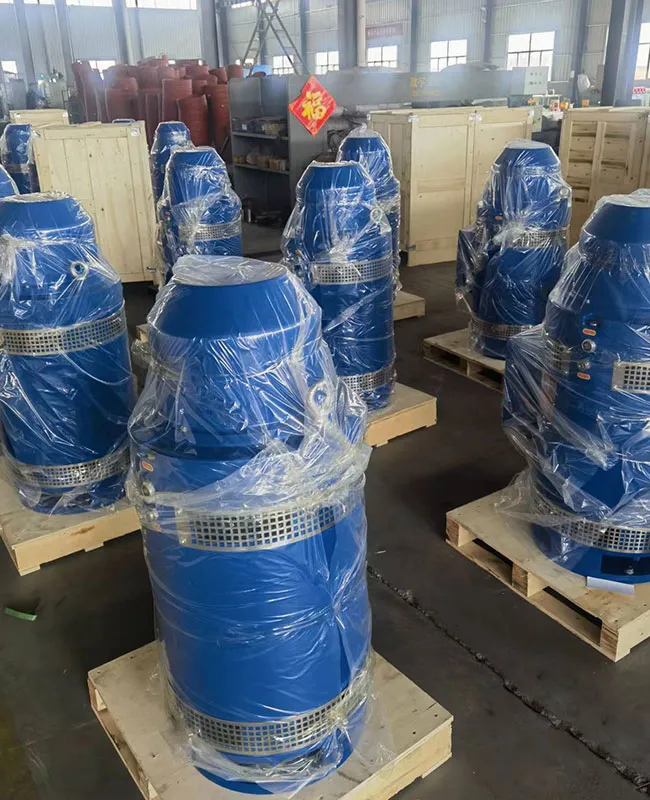

Iranian client ordered 136 IEC Class B VHS motors.
IEC Standard VHS Motor
Saudi client chose IP55, 125HP VHS motors.
IEC Standard VHS Motor

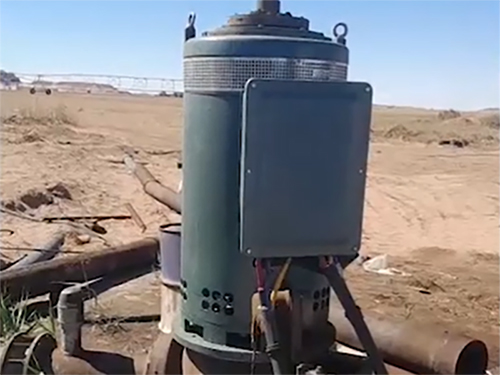

On-Site Video
Specifications
Click here to view details
Model Rated Power (HP) Frame Speed (RPM) Rated Voltage (V) Efficiency (%) Axial Thrust Load (Ibs) Frame Diameter (in) Weight (Ibs)
VHS213-2-0075 7.5 213 3600 380-420V/660V 88.5 2000 10 302
VHS215-4-0075 7.5 215 1800 380-420V/660V 91.0 2500 10 302
VHS213-2-010 10 213 3600 380-420V/660V 89.5 2000 10 340
VHS215-4-010 10 215 1800 380-420V/660V 91.7 2500 10 340
VHS215-2-015 15 215 3600 380-420V/660V 90.2 2000 10 448
VHS254-4-015 15 254 1800 380-420V/660V 93.0 3200 10 583
VHS254-2-020 20 254 3600 380-420V/660V 91.0 2500 10 596
VHS256-4-020 20 256 1800 380-420V/660V 93.0 3200 10 621
VHS256-2-025 25 256 3600 380-420V/660V 91.7 2500 10 646
VHS284-4-025 25 284 1800 380-420V/660V 93.6 3200 10 658
VHS284-2-030 30 284 3600 380-420V/660V 91.7 2500 10 674
VHS286-4-030 30 286 1800 380-420V/660V 94.1 3200 10 698
VHS286-2-040 40 286 3600 380-420V/660V 92.4 2500 10 728
VHS324-4-040 40 324 1800 380-420V/660V 94.1 5500 16.5 937
VHS324-4-040 40 324 1800 460 94.1 5500 16.5 937
VHS324-2-050 50 324 3600 380-420V/660V 93.0 4290 16.5 956
VHS324-2-050 50 324 3600 460 93.0 4290 16.5 956
VHS326-4-050 50 326 1800 380-420V/660V 94.5 5500 16.5 989
VHS326-4-050 50 326 1800 460 94.5 5500 16.5 989
VHS326-2-060 60 326 3600 380-420V/660V 93.6 4290 16.5 1030
VHS326-2-060 60 326 3600 460 93.6 4290 16.5 1030
VHS364-4-060 60 364 1800 380-420V/660V 95.0 5600 16.5 1140
VHS364-4-060 60 364 1800 460 95.0 5600 16.5 1140
VHS364-2-075 75 364 3600 380-420V/660V 93.6 4400 16.5 1162
VHS364-2-075 75 364 3600 460 93.6 4400 16.5 1162
VHS365-4-075 75 365 1800 380-420V/660V 95.0 5600 16.5 1192
VHS365-4-075 75 365 1800 460 95.0 5600 16.5 1192
VHS365-2-100 100 365 3600 380-420V/660V 93.6 4400 16.5 1226
VHS365-2-100 100 365 3600 460 93.6 4400 16.5 1226
VHS404-4-100 100 404 1800 380-420V/660V 95.4 6700 16.5 1638
VHS404-4-100 100 404 1800 460 95.4 6700 16.5 1638
VHS404-2-125 125 404 3600 380-420V/660V 94.1 5265 16.5 1646
VHS404-2-125 125 404 3600 460 94.1 5265 16.5 1646
VHS405-4-125 125 405 1800 380-420V/660V 95.4 6700 16.5 1700
VHS405-4-125 125 405 1800 460 95.4 6700 16.5 1700
VHS405-2-150 150 405 3600 380-420V/660V 94.1 6285 16.5 1755
VHS405-2-150 150 405 3600 460 94.1 6285 16.5 1755
VHS444-4-150 150 444 1800 380-420V/660V 95.8 8000 16.5 2256
VHS444-4-150 150 444 1800 460 95.8 8000 16.5 2256
VHS445-4-200 200 445 1800 380-420V/660V 95.8 8000 16.5 2438
VHS445-4-200 200 445 1800 460 95.8 8000 16.5 2438
VHS445-4-250 250 445 1800 380-420V/660V 95.8 8000 16.5 2588
VHS445-4-250 250 445 1800 460 95.8 8000 16.5 2588
VHS447-4-300 300 447 1800 460 95.8 8000 20 2990
VHS5006P-4-300 300 5006P 1800 460 95.8 8750 20 3946
VHS5006P-4-350 350 5006P 1800 460 95.8 8750 20 4057
VHS5008P-4-400 400 5008P 1800 460 95.8 8750 24.5 5302
VHS5008P-4-450 450 5008P 1800 460 96.2 8750 24.5 5483
VHS5008P-4-500 500 5008P 1800 460 96.2 8750 24.5 5655
VHS5807P-4-600 600 5807P 1800 460 96.2 9680 30.5 6872
Key Features
  • Equipped with two angular contact ball thrust bearings at the motor’s top, these motors effortlessly manage upward or downward thrust. The lower radial ball bearing handles any radial loads from the pump.
  • Designed to power deep-well turbine pumps, our vertical hollow shaft motors support self-releasing, bolted, or non-reverse couplings, as specified by the client. Located at the motor’s top, these couplings allow easy pump impeller adjustments. Access them by removing the top cover and fan housing.
FAQ

We use high-quality bearings from trustworthy brands, including TMB, NSK, SKF, and FAG, to ensure long-term durability. Bearings are essential for optimal VHS motor performance, as they withstand axial thrust, improve reliability, and extend service life. Additionally, custom bearing options are available upon request.

Yes, we have exported high-powered VHS motors worldwide, including the United States, Mexico, the Middle East, and Europe.

Yes, our motors are engineered for ambient temperatures of 50–60°C, and thanks to enhanced thermal design and high-temperature-resistant materials, our IEC standard VHS motors can operate safely at up to 70°C in harsh climates such as deserts or high-heat industrial zones.

We provide motors in IE3, IE4, and IE5 energy efficiency classes to meet varying international standards and application needs, from basic industrial usage to advanced energy-saving projects.

SEMC motors are designed with wide voltage adaptability, covering multiple regional standards including 230V, 380V, 400V, 415V (European), and 460V (North American), making them ideal for use across the globe.

Our motors are built to accommodate a wide range of input voltage, ranging from 300 to 460V.
