Z Series

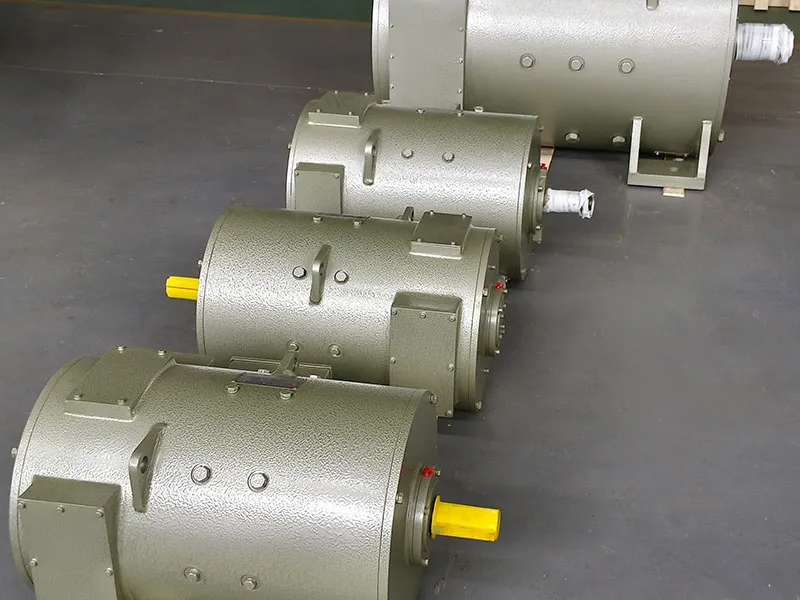

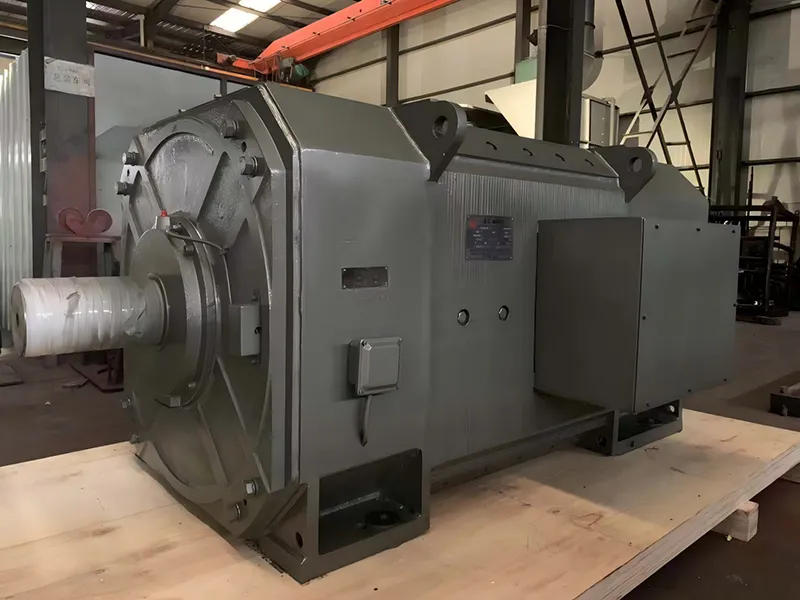

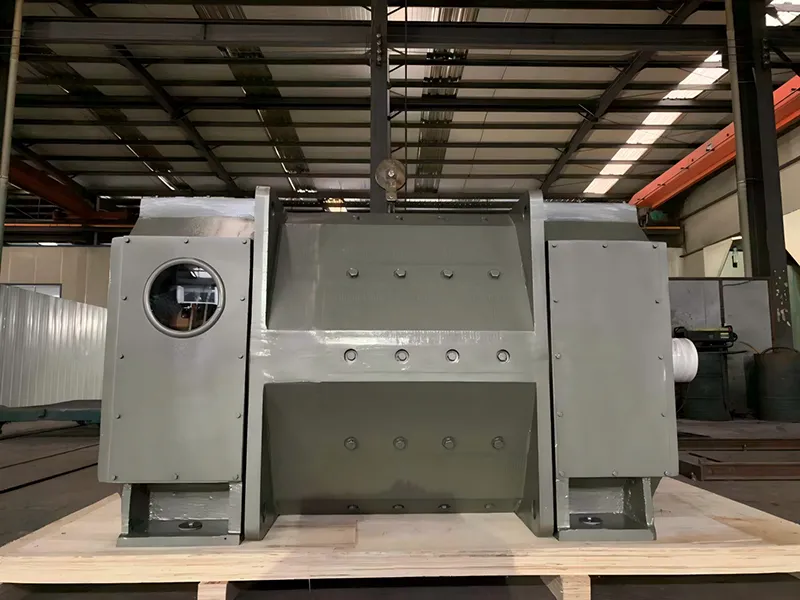

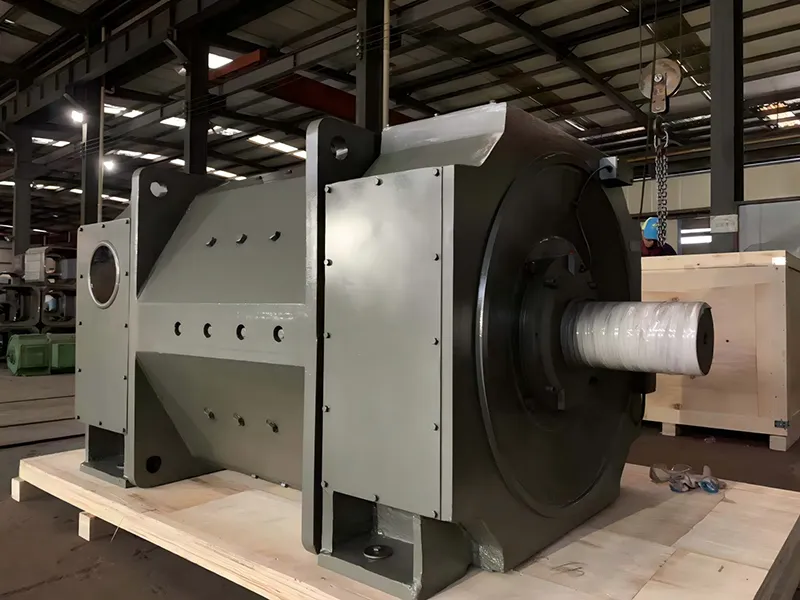

Electric motor for metal rolling mills, paper machines and other industrial machines

Our medium-sized DC motors (Z Series) are suitable for the main and auxiliary drives of metal rolling mills, metal cutting machines, excavators, paper machines, mine hoists, experimental equipment, cranes, and other machinery.

Our DC motors offer a wide range of power, torque, and speed, making them highly adaptable to various transmission requirements. With excellent electrical performance and a well-designed structure, our motors meet the standards of similar advanced foreign motors in both electrical performance and structural installation dimensions.

Request a Quote

Frame: Z315-Z1000
Power: 60-2800kW
Voltage: 220-1000V
Torque: 1.5-180kNm
Protection degree: IP23/IP44
Cooling method: IC06/IC17/IC37/IC81W

Specifications

Series Number	Speed under Voltage Below Rated Voltage (RPM)				Output (kW)	Rated Current (A)	Efficiency (%)	Max. Speed (RPM)	Excitation Power (kW)	Moment of Inertia (kg.m²)	Ventilation
	Speed under Voltage Below Rated Voltage (RPM)										Volume (m³/s)	Air Pressure (Pa)
	440V	550V	660V	750V							Volume (m³/s)	Air Pressure (Pa)
01	230				490	1233	89.1	690	7.6	320	6.5	1000
		300			630	1223	92.2	1000	7.6	320	6.5	1000
			335		759	1229	92	1050	7.6	320	6.5	1000
				380	860	1208	92.3	1150	7.6	320	6.5	1000
02	280				650	1630	92.8	900	7.6	320	6.5	1000
		335			840	1625	93	1000	7.6	320	6.5	1000
			425		1000	1600	93.2	1000	7.6	320	6.5	1000
				485	1150	1615	93.3	1100	7.6	320	6.5	1000
03	325				800	1952	92.5	900	7.6	320	6.5	1000
		400			1000	1935	92.9	850	7.6	320	6.5	1000
			470		1250	2000	93.1	1000	7.6	320	6.5	1000
				530	1400	1965	93.3	1000	7.6	320	6.5	1000
04	350				850	2065	92.5	900	7.6	320	6.5	1000
		450			1200	1930	92.8	1000	7.6	320	6.5	1000
			500		1400	1915	93.3	1000	7.6	320	6.5	1000

Key Features

The frame of the medium-sized DC motor features a polygonal laminated structure made from thin steel plates, ensuring compact size and light weight. It is suitable for use with silicon-controlled rectifier power supplies, and the motor maintains excellent commutation performance during rapid load-current variations. The stator and rotor are treated with solvent-free varnish through vacuum pressure impregnation (VPI), giving the windings good moisture resistance, mechanical strength, reliable insulation, and good thermal conductivity. The armature core is laminated with silicon steel sheets to ensure good magnetic performance. All motors in this series use rolling bearings with a lubrication system that allows oiling without stopping the machine, and they feature Class H insulation.
The mounting arrangements comply with the GB997 and IEC 34-7 standards on construction types and mounting designations for rotating electrical machinery.

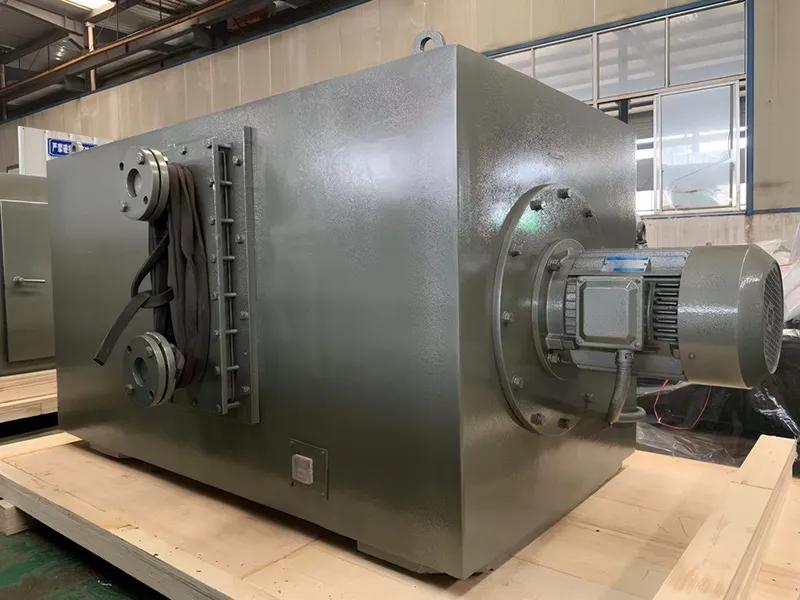

In compliance with GB1993 and IEC 34-6 standards, the medium-sized DC motor is available with IP23 or IP44 protection ratings, and features cooling methods IC06, IC17, IC37, and ICW37A86. In the standard design, the cooling air inlet is located at the motor’s drive end (the non-commutator end). Other protection levels and cooling methods can be customized during consultation.
