Industrial DC Motor

Z4 Series

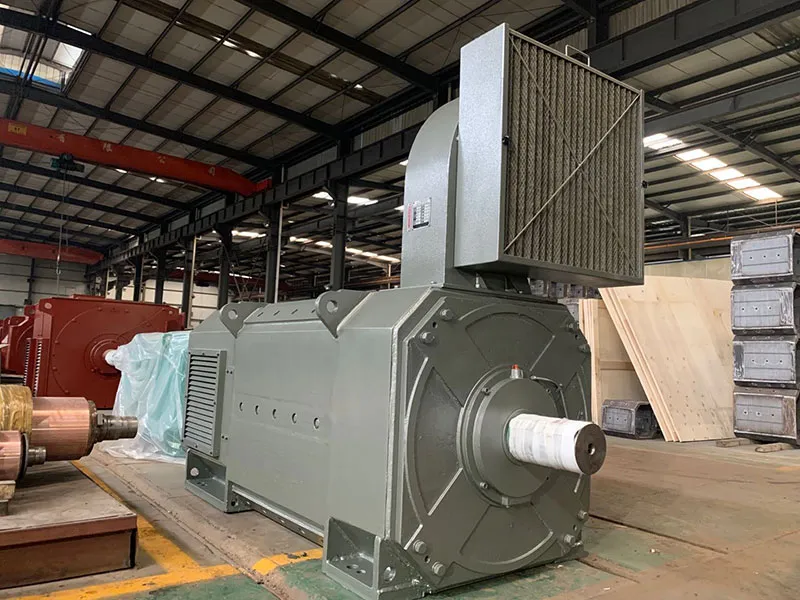

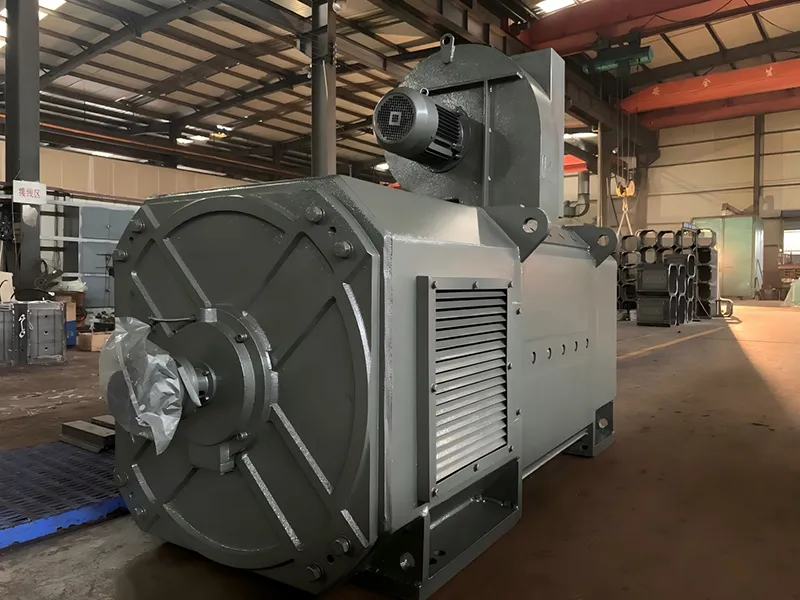

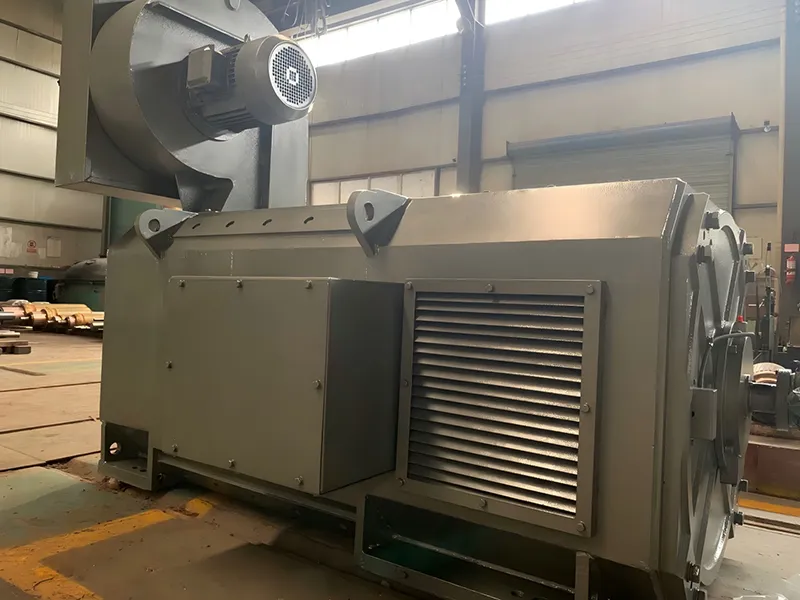

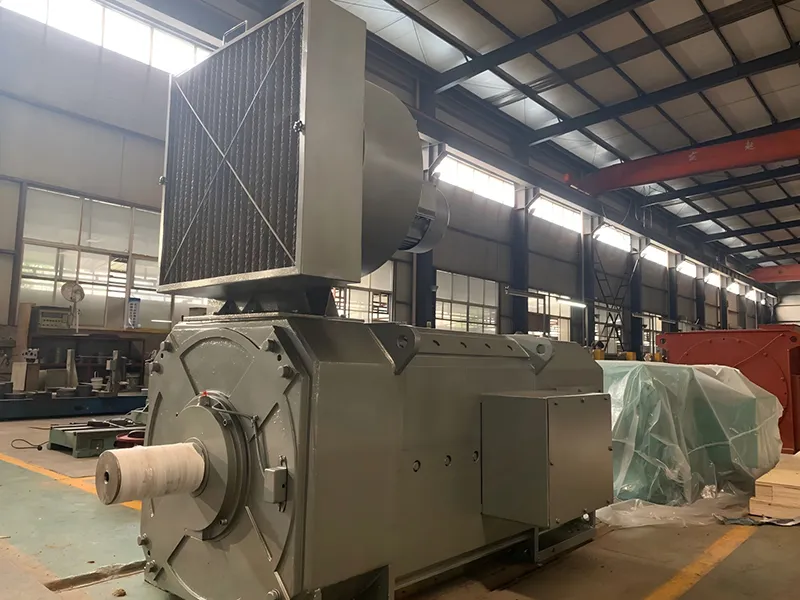

Electric motor with square frame for industrial machines

Our industrial DC motors (Z4 series) feature square frames and are used in various industrial machines. They are suitable for applications in metallurgy, machining, paper, textiles, printing, cement, and plastic extrusion. Compliant with IEC34-1 and DIN57530 standards, our Z4 series motors have a high space utilization owing to their square frames. Additionally, they are equipped with laminated stator yokes which are ideal for rectifier power supply, handling pulsating currents and rapid current changes, and adapting to load variations.

Z4 series industrial DC motor can operate with a fully controlled three-phase bridge rectifier power supply and can operate long-term without an external smoothing reactor. The motor uses a reliable insulation structure and vacuum pressure impregnation (VPI) process with class F insulation, ensuring stable performance and excellent heat dissipation. It feature a compact size, low moment of inertia, excellent dynamic performance, light weight, high output power, high efficiency, and strong operational reliability, making the overall performance comparable to advanced motor of international technologies.

Request a Quote

Center height: 400-450mm, 500-710mm
Power: 1.5-840kW
Voltage: 220-420V
Rated speed: 3000/1500/1000/750/600/500/400/300/200RPM
Torque: 90-1500kNm
Protection degree: IP23/IP44
Cooling method: IC06/IC17/IC37/IC81W

Specifications

Model	Rated Power	Speed		Rotation Speed with Field Weakening	Arm. Current	Field Power	Arm. Circuit Resistance	Arm. Circuit Inductance	Field Inductance	Efficiency	Moment of Inertia	Weight
	PN	400V	440V	nF	IN	PF	R	LA	Lp		GD²
	kW	RPM		RPM	A	W	Ω(20℃)	mH	H	%	kg.m2	kg
Z4-400-32	500	680		1400	1340	6400	0.0112	0.3	9.57	91.2	84	4900
	550		750							92.5
Z4-400-32	400	540		1300	1083		0.0162	0.35	4.51	89.9
	440		600							91.1
Z4-400-32	344	450		1300	952		0.0248	0.58	6	88.1
	380		500							89.5
Z4-400-31	270	360		1200	768		0.03821	0.82	6.11	86
	300		400							87.5
Z4-400-31	208	270		900	611		0.0659	1.5	5.89	82.8
	230		300							84
Z4-400-42	435	540		1300	1175	7100	0.0134	0.32	5.54	90.8	94	5300
	480		600							92
Z4-400-42	390	450		1400	1070		0.0201	0.47	6.86	88.6
	430		500							90
Z4-400-42	316	360		1200	880		0.0274	0.73	5.41	87.7
	350		400							89
Z4-400-41	235	270		900	676		0.0508	1.2	5.38	84
	260		300							85.4
Z4-450-22	472	540		1200	1286	6500	0.0133	0.29	10.2	90.8	138	5600
	520		600							92.1
Z4-450-22	408	450		1400	1114		0.0159	0.41	7.99	90
	450		500							91.3
Z4-450-22	362	360		1200	1010		0.0232	0.61	5.79	88.1
	400		400							89.4
Z4-450-21	253	270		900	720		0.0415	1	5.82	85.8
	280		300							87.1
Z4-450-32	500	540		1200	1358	7100	0.0134	0.39	19.6	90.8	156	6000
	550		600							92
Z4-450-32	453	450		1300	1228		0.0145	0.32	7.36	90
	500		500							91.4
Z4-450-32	408	360		1200	1130		0.0205	0.53	7.17	88.5
	450		400							89.7
Z4-450-32	309	270		900	875		0.0342	0.83	4.8	85.9
	340		300							87.1
Z4-450-31	200	180		600	595		0.0751	1.9	9.09	81.3
	220		200							82.6
Z4-450-42	545	540		1100	1492	7800	0.0134	0.51	28.2	90.3	174	6700
	600		600							91.5
Z4-450-42	500	450		1100	1367		0.0145	0.43	18.6	90
	550		500							91.4
Z4-450-42	453	360		1200	1254		0.0178	0.42	5.85	88.9
	500		400							90
Z4-450-42	345	270		900	972		0.0275	0.81	5.62	86.8
	380		300							88.1
Z4-450-41	235	180		600	698		0.0612	1.7	5.73	81.7
	260		200							83
